Introduction of Quadcopter Drone ( Quadcopter Drone )

A quadcopter is also called a quadrotor helicopter or quadrotor. The quadcopters are classified as rotorcraft, as opposed to fixed-wing aircraft because their life is generated by a set of rotors.

Quadcopters generally use two pairs of identical fixed pitched propellers; two clockwise (CW) and two counterclockwise (CCW). These use independent variation of the speed of each rotor to achieve control. By changing the speed of each rotor it is possible to specifically generate a desired total thrust; locate for the center of thrust both laterally and longitudinally, and to create a desired total torque, or turning force.

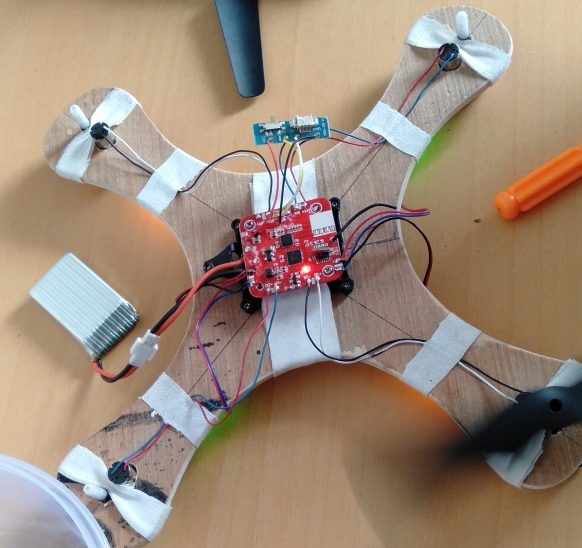

Fig.1 Quadcopter Drone



Quadcopters differ from conventional helicopters, which use rotors that can vary the pitch of their blades dynamically as they move around the rotor hub. In the early days of flight, quadcopters (then referred to either as ‘quad rotors’ or simply as ‘helicopters’) were seen as possible solutions to some of the persistent problems in vertical flight. Torque-induced control issues (as well as efficiency issues originating from the tail rotor, which generates no useful lift) can be eliminated by counter-rotation, and the relatively short blades are much easier to construct. Several manned designs appeared in the 1920s and 1930s. These vehicles were among the first successful heavier-than-air vertical takeoff and landing (VTOL) vehicles. However, early prototypes suffered from poor performance, and latter prototypes required too much pilot workload, due to poor stability augmentation and limited control authority.

In the late 2000s, advances in electronics allowed the production of cheap lightweight flight controllers, accelerometers (IMU), global positioning systems, and cameras. This resulted in the quadcopter configuration becoming popular for small unmanned aerial vehicles. With their small size and maneuverability, these quadcopters can be flown indoors as well as outdoors.

At a small size, quadcopters are cheaper and more durable than conventional helicopters due to their mechanical simplicity. Their smaller blades are also advantageous because they possess less kinetic energy, reducing their ability to cause damage. For small-scale quadcopters, this makes the vehicles safer for close interaction. It is also possible to fit quadcopters with guards that enclose the rotors, further reducing the potential for damage. However, as size increases, fixed propeller quadcopters develop disadvantages relative to conventional helicopters. Increasing blade size increases their momentum. This means that changes in blade speed take longer, which negatively impacts control. Helicopters do not experience this problem as increasing the size of the rotor disk does not significantly impact the ability to control blade pitch.

Introduction of Quadcopter Drone

Quadcopter drones have gained immense popularity in recent years due to their versatility and wide range of applications. These unmanned aerial vehicles (UAVs) are equipped with four rotors that provide them with stability and maneuverability. In this article, we will delve into the details of quadcopter drones, their components, functionalities, and their impact on various industries. So, let’s take a closer look at this fascinating technology.

What is a Quadcopter Drone?

A quadcopter drone is a type of UAV that features four rotors arranged in a square or X-shaped configuration. The term “quadcopter” is derived from the Latin word “quad” meaning four and “copter” referring to a rotorcraft. These drones are commonly used for recreational purposes, aerial photography and videography, surveillance, research, and even package delivery.

Components of a Quadcopter Drone

A quadcopter drone consists of several essential components that work together to ensure its proper functioning. These components include:

1. Frame

The frame of a quadcopter drone serves as its basic structure, providing support and housing for other components. It is typically made of lightweight and durable materials such as carbon fiber or aluminum alloy.

2. Motors and Propellers

Quadcopter drones are equipped with four brushless electric motors, one for each rotor. These motors generate the necessary thrust to lift the drone off the ground. Connected to the motors are propellers that help create the lift and control the drone’s movement.

3. Electronic Speed Controllers (ESCs)

Electronic Speed Controllers are responsible for regulating the speed of each motor. They receive commands from the flight controller and adjust the power supply to the motors accordingly. This allows the drone to stabilize and maneuver in different directions.

4. Flight Controller

The flight controller serves as the brain of the quadcopter drone. It receives input from various sensors, such as gyroscopes and accelerometers, and calculates the drone’s position, orientation, and flight parameters. It also processes user commands and adjusts the motor speeds to maintain stability.

5. Battery and Power Distribution

Quadcopter drones require a power source to operate, which is usually a rechargeable lithium polymer (LiPo) battery. The battery powers the motors, flight controller, and other electronic components. A power distribution board distributes power from the battery to all the necessary components.

Functionality and Applications of Quadcopter Drones

Quadcopter drones offer a wide range of functionalities and have found applications in various industries. Some of their key functionalities include:

Aerial Photography and Videography

One of the most popular uses of quadcopter drones is capturing stunning aerial photographs and videos. Equipped with high-resolution cameras, these drones can capture breathtaking shots from unique angles and perspectives.

Surveillance and Security

Quadcopter drones are extensively used for surveillance and security purposes. They can provide real-time video footage of large areas, making them ideal for monitoring crowd gatherings, securing perimeters, and aiding in search and rescue operations.

Agriculture and Crop Monitoring

In the agriculture industry, quadcopter drones are employed for crop monitoring and analysis. Equipped with specialized sensors and cameras, these drones can assess crop health, detect irrigation issues, and optimize farming practices.

Research and Environmental Studies

Quadcopter drones are valuable tools for conducting research and environmental studies. They can collect data in remote or inaccessible areas, monitor wildlife populations, and track changes in ecosystems over time.

Package Delivery and Logistics

Some companies are exploring the use of quadcopter drones for package delivery and logistics. With their ability to navigate quickly and efficiently, these drones have the potential to revolutionize the delivery industry by reducing costs and delivery times.

Conclusion

Quadcopter drones have revolutionized the way we perceive aerial technology. With their agility, versatility, and wide range of applications, these drones have become indispensable in various industries. From capturing stunning aerial footage to aiding in surveillance and research, quadcopter drones have proven to be game-changers. As technology continues to advance, we can expect further enhancements and innovations in this exciting field.

FAQs (Frequently Asked Questions)

1. Q: Are quadcopter drones difficult to fly? A: Quadcopter drones can be easily flown by beginners due to their stability and built-in flight control systems.
2. Q: How long can quadcopter drones fly on a single battery charge? A: The flight time of quadcopter drones varies depending on factors such as battery capacity and payload. Typically, they can fly for 15-30 minutes on a single charge.
3. Q: Can quadcopter drones be used indoors? A: Yes, quadcopter drones can be used indoors, but it is essential to ensure sufficient space and take precautions to avoid collisions with objects.
4. Q: Are there any regulations for flying quadcopter drones? A: Yes, there are regulations in place for flying quadcopter drones. It is crucial to familiarize yourself with the local laws and guidelines to ensure safe and legal operation.
5. Q: Can quadcopter drones carry heavy payloads? A: The payload capacity of quadcopter drones varies depending on the model. Some drones are capable of carrying small packages or specialized equipment, while others are designed for lighter payloads such as cameras.
