Fixed Wing Drones

Fixed Wing drones are entirely different in design. They use a ‘wing’ just like the normal airplanes out there. Instead, they move forward on their set course or as set by the guide control (possibly a foreign unit operated by a human) as long as their energy source permits.

Most fixed-wing drones have a mean flying time of a few hours. Internal combustion engine-powered drones can fly up to 16 hours or higher. But they will not be used for aerial photography where the drone must be kept still on the air for a period of your time.

The other downsides of fixed-wing drones are higher costs & skill training required in flying. It’s tough to place a hard and fast wing drone within the air. You either need a ‘runway’ or a catapult launcher to line a hard and fast wing drone its course within the air. A runway or a parachute or a net is again necessary to land them back on the ground safely. On the opposite side, multi-rotor drones are cheap – anyone with a couple of hundred dollars to spare can purchase an honest quadcopter. Flying a quadcopter doesn’t require special training. You only take them to an open area and fly them. Guiding and controlling a quadcopter are often learned on the go.

However, the downside to the present platform is that the requirement for a runway during landing or takeoff.  This sort of fixed-wing aircraft has Vertical Takeoff and Landing (VTOL) technology.

What types of force operate fix wing drone:

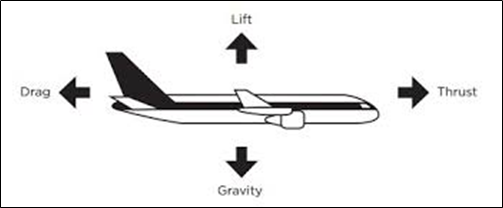

Four main forces are operating on an aircraft while on the wing. These are:

1.  Lift
2. Gravity
3. Drag
4. Thrust

During the steady flight, these four forces are in equilibrium, which suggests thrust counteracts drag and lift counteracts gravity. This is often illustrated within the figure shown below.

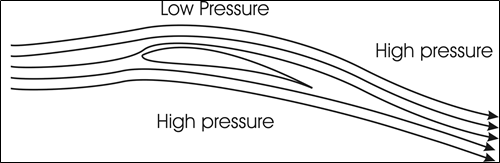

Not only are these forces present on fixed-wing aircraft, but also all the opposite categories are presented. To know how the lift is generated a cross-sectional view of the wing and therefore the airflow surrounding the wing is analyzed. This cross-sectional view of the wing is named an “airfoil”.



As shown above, the airfoil creates a neighborhood of low on the highest surface of the airfoil and a neighborhood of high on the lower surface. This is often caused by the airfoil shape “turning” the flow downward. As a result, the airflow over the top of the site generates a low-pressure region causing the wing to be lifted upward.

The control of an aircraft are;

Roll- This maneuver will rotate the wings right or left around the fuselage of the aircraft.

Pitch – this is often what makes the aircraft climb and descend.

Yaw- this is often the turning of the airplane. This maneuver points the nose of the aircraft to the proper or left.

Each of those maneuvers is a result of moving the control surfaces on the aircraft. The three main control surfaces on an aircraft are:

Ailerons – control the roll of the aircraft.

Rudder- Control the yaw of the aircraft.

Elevators – control the pitch of the aircraft.



Can a Fixed-Wing be utilized in Negative Ways?

The fixed-wing category of UAVs is that the most diverse as far as payload types, range, endurance, and what they will be used for. For instance the usefulness of the fixed-wing category, this text will break down the fixed-wing aircraft supported size to spotlight what each size category is usually utilized for.

1. Large fixed-wing (10lbs or higher)
2. Medium fixed-wing (2lbs-10lbs)
3. Small fixed-wing (2lbs or less)

Fixed Wing Flight Benefits

1. Long-range and endurance
2. High altitude is capable of creating detection difficult
3. Can carry relatively heavy objects
4. Quiet during operation

Looking at this UAV from a security standpoint, this model might be used for various missions:



1. Surveillance – Mounting a camera on the rock bottom of the fixed-wing provides a stable platform for top altitude photography.
2. Flying Weaponry – This model can easily be retrofitted to hold a gun and programmed to fireside at the command of the pilot.
3. Dropping Supplies/Explosives – These fixed-wing aircraft are often retrofitted to hold supplies and explosives which will be dropped from a high-altitude design to impact a selected target. This makes for difficult detection and with long-range and high endurance capabilities little chance of the pilot being discovered.

Large Fixed-Wing

Large fixed-wing UAVs generally have a high endurance, long-range, and high payload capacity. There are many various sorts of these platforms available on the market today. For a general idea of the performance of this class of UAVs, the My TwinDream 1.8m UAV was selected.

The battery utilized in this specific aircraft may be a 14.8v Lithium Polymer (Li-Po) 20Ah battery. This aircraft features a “cruising current” of 10 Amps. Below this, the flight time is 1.5 hrs.



Estimating a propeller pitch size of 7”, this aircraft is capable of achieving a variety of roughly 62 miles.

This aircraft can carry a good sort of payloads. With large enough motors this aircraft could carry up to 20lbs of payload. With carrying this massive amount of payload, it’s expected that the range may drop from 62 miles to approximately 20 miles. This specific aircraft is additionally capable of being “hand-launched” so an outsized runway isn’t needed for takeoff or landing. This permits discreet takeoff and landings.

With an outsized fixed-wing aircraft’s capability of long-range missions, this makes them the right platform for carrying heavier payloads while still having significant range capabilities.

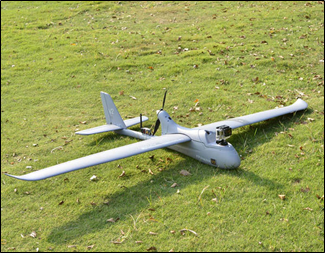

Medium Fixed-Wing



Medium Fixed-W- Wing UAVs generally have high endurance, long-range, and low payload capacity. This is often presumably the foremost popular fixed-wing size range available on the market today. For a general overview of the performance which will be seen from this UAV class, the Volant Firstar V2 is highlighted.



This aircraft features a wingspan of roughly 80” and weighs around 7 pounds with no payload. The utmost sized battery which will be used with this aircraft may be a 14.8v 20Ah Lithium Polymer battery. This can mean the Firstar has an endurance of 1.5 hours. Since this aircraft’s propeller pitch and motor Ki are slightly above the long-range aircraft this platform features a longer range of roughly 100 miles.

This medium-sized UAV with high endurance and long-range capabilities makes an excellent platform for top altitude surveillance and even dropping small payloads without being easily detected. The entire cost of this model is around $1,250.

Small fixed-wing

Small fixed-wing UAVs generally is capable of long endurance and long-range flights. However, they lack the specified wing area necessary to hold large amounts of payload. For the tiny fixed-wing category, the Strip Nano Goblin is highlighted.
